Metal chips

Silos

HORIZONTAL

Metal chips

The FAMA silos are ideal for the storage of metal chips in order to optimize their disposal operations. The horizontal silos are designed for internal installations, to safeguard valuable materials against theft and to optimize spaces.



HORIZONTAL
  • Cradle in completely waterproof
  • Galvanized support structure
  • Custom designed and sized, according to your needs
  • Support structure accompanied by certified structural calculation report

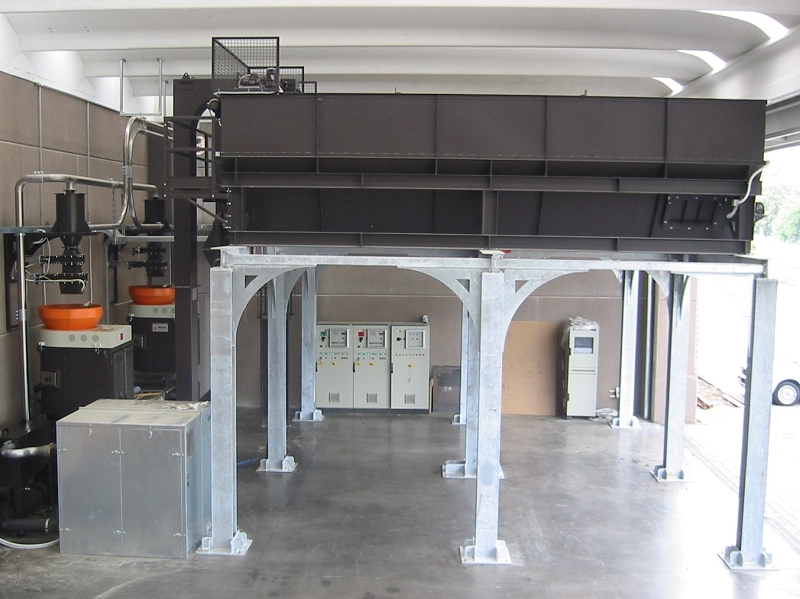

  • Loading by pneumatic or mechanical conveyor



FAMA silos are storage tanks for swarf accumulation. They are designed and sized to contain an adequate quantity of material in order to optimise swarf disposal operations. The horizontal silos are designed for interiors, in order to safeguard the content (brass, copper, stainless steel, ... materials of a certain value), and to optimise spaces.  The area under the silo can in fact be used as a warehouse or to position other machines (washing machines, piece counters, ...). The trapezoidal section tank is emptied by a screw positioned at the bottom of the tank.


EXPLORE

download Horizontal silo product sheet [ pdf - 1132 Kb ]

TYPE
horizontal
CAPACITY
10 ÷ 30 mc
UNLOADING POSITION
lateral
POWER
7-30 kW
VOLTAGE
230/400 V
POWER SUPPLY
continuous
SILO CAPACITY IN KG

Silo capacity Brass Steel Aluminuum Stainless steel Copper Cast iron
10 mc 8.000 10.000 5.000 9.000 8.000 10.000
20 mc 16.500 20.000 10.000 18.000 16.000 20.000
30 mc 25.000 30.000 15.000 27.000 25.000 30.000

The data in kg is approximate and in any case depends on the density and shape of the swarf.

POSSIBLE APPLICATIONS

AVAILABLE OPTIONALS
FURTHER TECHNICAL <b>CARACTERISTICS</b>
FURTHER TECHNICAL CARACTERISTICS
  1. The dimensions of the silo are established according to the production needs. It is normally suitable for holding a week of production or more

  2. The height of the columns of the support structure are established based on the height of premises and of the truck container

  3. The chip containment tank undergoes a sandblasting and painting cycle with organic zinc plating, while the support structure is completely hot galvanized.

  4. The silo is equipped with a screw conveyor, to ensure a safe and correct unloading procedure

  5. The support structure is accompanied by a certified structural calculation report

  6. The anchor bolts for fixing the silo to the ground must be embedded in the concrete. Depending on the type of soil, it is possible to create plinth or inverted beam foundations
