Metal chips

Centrifuges

FC400

Metal chips

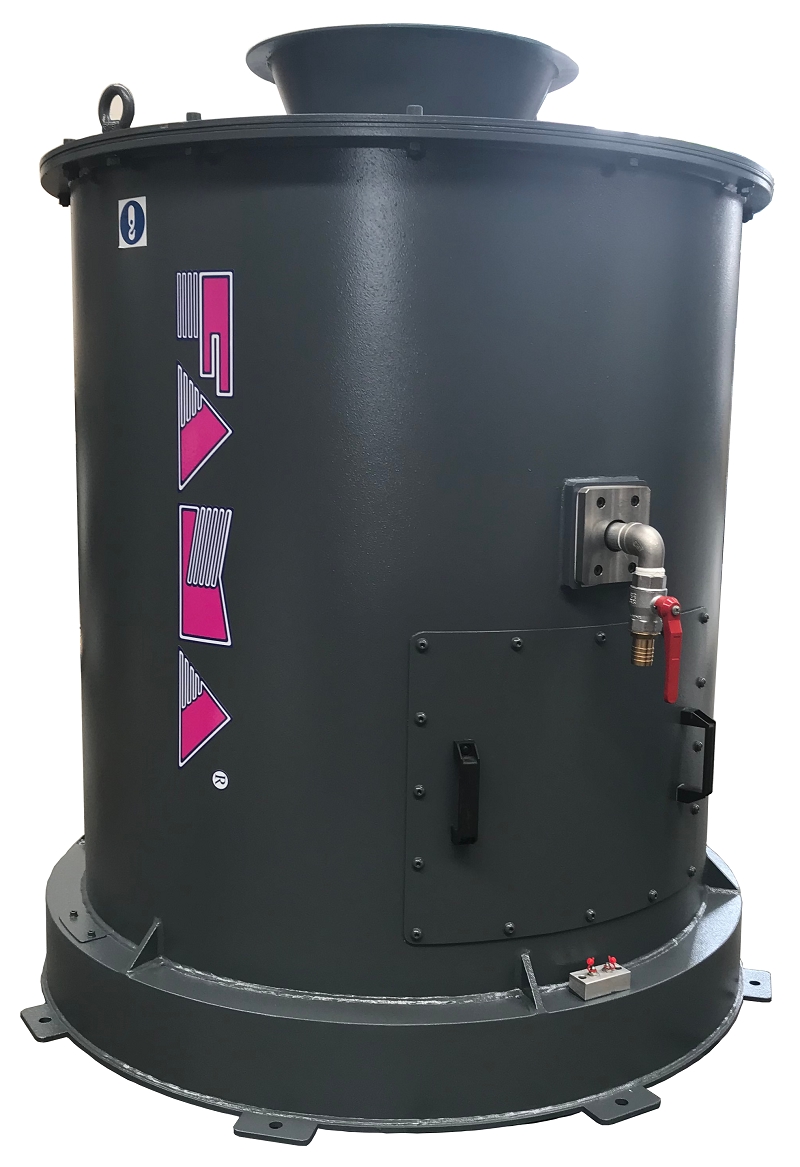

Automatic centrifuge ideal for separating and recovering the cooling lubricant.

It is a medium centrifuge, ideal to be integrated in a treatment group. The discharge of the treated chip is located in the bottom of the centrifuge.



FC400
  • Structure made of sturdy painted metalwork RAL 7016, anchored to a thick and rigid platform
  • Basket made from a block of special steel turned on a CNC machine and heat treated
  • Parts in contact with the chip made of special anti-wear materials
  • Anti-vibration dampers to reduce vibrations
  • Reduced dimensions
  • High efficiency
  • Easily replaceable slotted filter ring with differentiated holes

The FC400 centrifuge is a unit suitable for centrifuging metal, ferrous and non-ferrous swarf, in order to recover the cooling lubricant used by the machine tool in the production process.

The FC400 centrifuge is designed for continuous feeding and for the treatment of short swarf, not exceeding 2 cm in length.

Under optimal conditions, the FC400 centrifuge allows to obtain swarf with a wet content that can reach up to 1.5%.

The actual efficiency of the centrifuge, as well as the actual hourly flow rate, depends on the characteristics of the swarf, in particular the material, the shape, the weight per unit of volume, as well as the starting humidity and can be confirmed by testing your swarf at our premises. If there are pieces in the swarf, such as bar headers, semi-finished products or bar ends, the FC400 centrifuge should be equipped with a sieve.






EXPLORE

download FC400 automatic centrifuge product sheet [ pdf - 2039 Kb ]

DIMENSIONS Ø X H
1121 X 1188 mm
POWER
4 kW
VOLTAGE
230/400 V
POWER SUPPLY
Continuous
RPM
1.480 rpm
WEIGHT
540 kg
HOURLY PRODUCTION

Q = 800 l/h Brass Steel Aluminium Stainless steel Copper Cast iron
density [kg/l] 1,30 1,20 0,40 1,00 0,80 1,30
Kg/h 1000 960 320 800 650 1000

The data in kg/h is approximate and in any case depends on the density of the swarf, the shape, the oil content and the type of coolant. the density data considered are hypothetical, based on an experimental average of the data in our possession.

POSSIBLE APPLICATIONS

AVAILABLE OPTIONAL
FURTHER TECHNICAL <b>CARACTERISTICS</b>
FURTHER TECHNICAL CARACTERISTICS
  1. In order to optimize the de-oiling result, the machine should be equipped with an inverter.
  2. The cycle can be controlled by a logo or a PLC.
  3. It is essential to equip the centrifuge with a washing pump which will be installed on the coolant recovery tank as to prevent the accumulation of sludge in the fluid discharge channel and avoiding its clogging.
  4. The swarf must be short or not larger in size than 2 x 1 or 2 cm.
  5. The swarf must not contain pieces (end of bar, bar headers, processed parts, ...). Pieces in the order of cm are tolerated.
  6. The centrifuge must be loaded continuously and uniformly to ensure maximum performance.
